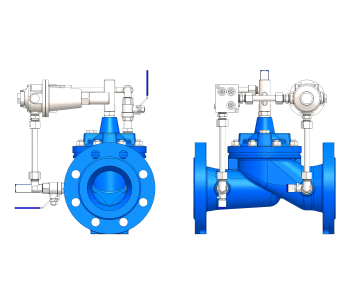

Downstream Pressure Reducing Valve

  • Design in compliance with EN 1074-5
  • Connection - flanged according to EN 1092-2
  • Media - treated, filtered water
  • Operating temperature maximum 70° C
  • Minimum operating pressure 0.7 bar
  • Maximum operating pressure 25 bar
  • Downstream pressure pilot adjustment range: 0.7 to 7 bar; 1.5 to 15 bar
Send an inquiry Technical specifications

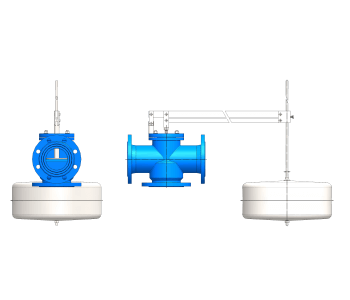

Ball Float Valve with Balanced Single Seat

  • Design in compliance with EN 1074
  • Flanges according to EN 1092-2
  • Nominal pressure PN 16 bar
  • Operating temperature maximum 70° C
Send an inquiry Technical specifications

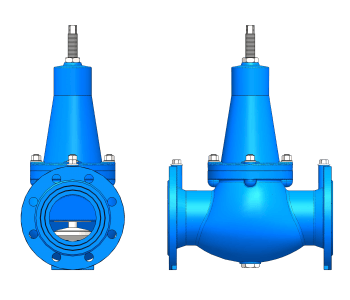

Direct Acting Pressure Reducer-Stabilizer

  • Design in compliance with EN 1074-5
  • Connection - flanged according to EN 1092-2
  • Operating temperature maximum 70° C
  • Upstream pressure (inlet): maximum 40 bar.
  • Downstream pressure (outlet): adjustable from 1,5 to 6 bar or from 5 to 12 bar.
  • Higher downstream pressure values on request.
Send an inquiry Technical specifications

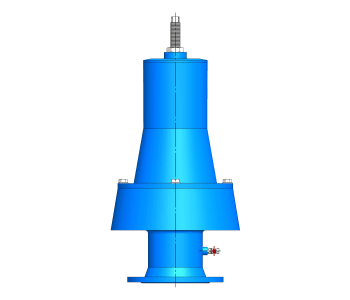

Pressure Relief Valve

  • Design in compliance with EN 1074
  • Connection - flanged according to EN 1092-2
  • Setting ranges: 1-8 bar, 8-16 bar, 16-25 bar
  • Operating temperature maximum 70° C
Send an inquiry Technical specifications
